Waxed Cardboard Bolt Cones

Alternative Names:
Waxed Cardboard Bolt Box, Conical Bolt Box

Be the first to review this product

Quick Overview

Bolt Cone needs to be 50mm shorter than the actual bolt

Code Product Name Price Qty

229mm Waxed Cardboard Bolt Cones

305mm Waxed Cardboard Bolt Cones

380mm Waxed Cardboard Bolt Cones

457mm Waxed Cardboard Bolt Cones

534mm Waxed Cardboard Bolt Cones

610mm Waxed Cardboard Bolt Cones

762mm Waxed Cardboard Bolt Cones

Discounts for larger quantities!

We provide competitive discounts for bulk orders.

Please contact us by either email at [email protected] or call 01268 571571 and we will calculate your unique discount for larger quantities.

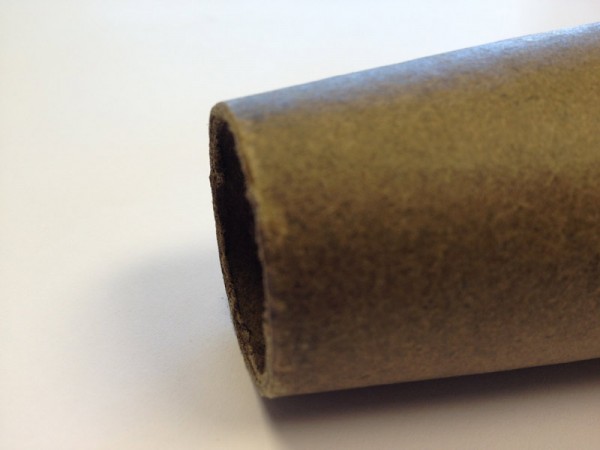

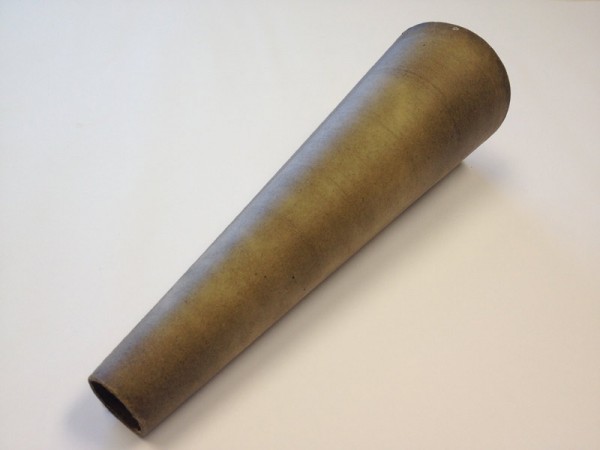

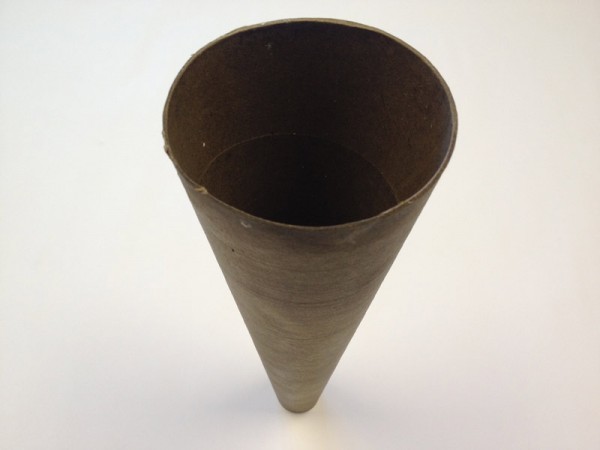

Conical Bolt Cones are manufactured from waxed cardboard. When used with a holding down bolt it will provide a conical void for easy bolt location adjustment, with minimum displacement of reinforced concrete. They can be reused by leaving 25mm of the box protruding and rotating them before the concrete is completely set. Applications include fixing stantion and machine bases.

Bolt Cone length = Holding Down Bolt Length less 75mm approx.

Polystyrene bolt boxes are also available upon request.

Additional Information

Material Waxed Cardboard
