B785 ECO Reinforcement Mesh|4.8m x 2.4m

Alternative Names:
B785, B785 Reinforcing mesh, B785 Mesh, Concrete reinforcement, Concrete Reinforcement Mesh, Structural Mesh, Concrete Reinforcing Mesh, Mat, Steel Reinforcement, Steel Reinforcement Mesh, Steel Sheeting, Mesh Fabric, Reinforcing Fabric, Reinforcing Matting, Reinforcing Mesh, Mesh, ECO Mesh

100 1 100 0

Quick Overview

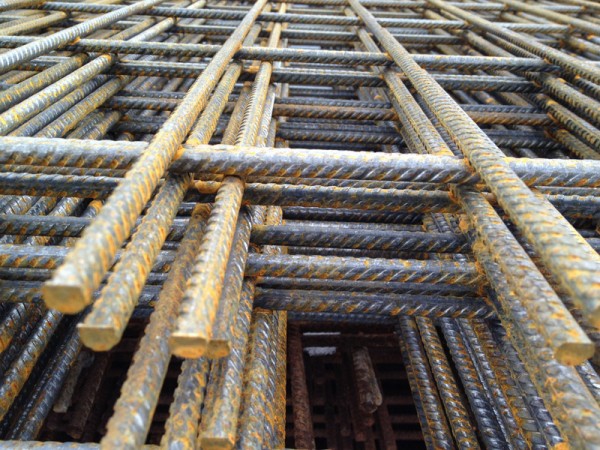

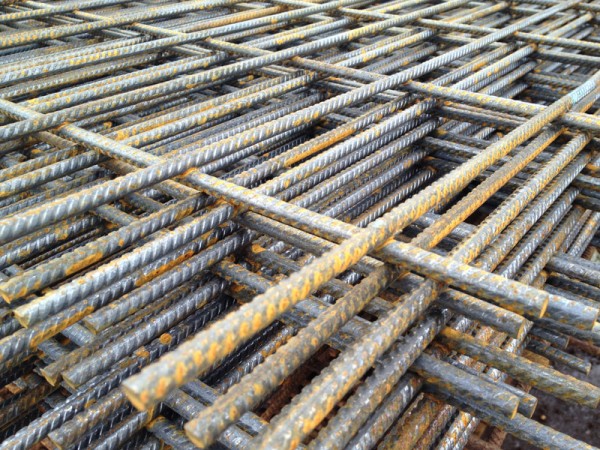

B785 Reinforcing Mesh

Lemon stock large quantities of competitively priced reinforcement mesh in standard size and merchant size. Mesh is a versatile and reliable reinforcement product extensively used in concrete slabs, walls and ground beams. We are committed to providing the highest quality mesh, reliable delivery and superior support to residential and commercial builders. We cover the whole of the UK with depots in the South East and the Midlands.

ECO Mesh offers an increased efficiency engineered solution for reinforced concrete floors by saving a reinforcement wire on each lap of the mesh sheet. ECO mesh has the same centres as standard fabric mesh with the exception of the external overhangs which are 250mm compared to 50mm.

Need some help deciding what you need for your project? Our knowledgeable team can advise you on every aspect of your foundations or groundwork requirements. Everything from a weekend DIY project, a self-build house, to a complex commercial design, we have the expertise to help you. If you have a schedule from your structural engineer, we can calculate all the reinforcing steel and accessories you need to seamlessly complete your project. We can manufacture all your reinforcing steel, ground beams, cut and bent bar and pile cages. We are a one stop shop for all your groundwork supplies.

Call our team of friendly experts on 01268 571571 and let us help you choose the reinforcement your project requires.

  • Buy 10 for £94.50 each and save 10%
  • Buy 20 for £89.25 each and save 15%
  • Buy 30 for £84.00 each and save 20%


From £84.00 Per Sheet

B785 Reinforcement mesh is primarily used as a fabric for reinforcing concrete slabs, walls and other constructions. When encased in concrete, it greatly increases the rigidity and strength of the structure. As the coefficient of thermal expansion is similar in both steel and concrete, a steel mesh reinforced concrete slab or wall expands and contracts at a comparable rate, therefore temperature fluctuations will not cause cracking of the concrete. Reinforcing steel is very strong in tension and concrete is strong in compression, by combining these two materials a very durable building structure is created. Steel reinforcement mesh is frequently specified by a qualified structural engineer.

For DIY, Self-Build and many domestic applications such as patios, driveways, shed and garage bases, walls etc. A142 mesh is most commonly used. It has 6mm longitudinal and cross wires and is reasonably light and manageable. As the expected loads placed on domestic concrete slabs etc. are relatively low, there is less requirement for a heavier mesh.

Need some help?  Call our friendly team of foundation experts on 01268 571571

Genius Hints Always have sufficient concrete covering for the mesh, both above, below and around. Mesh should be supported from below at regular intervals by Continuous Hystools, Circular Wire Spacers, Concrete Bar Spacers or Plate Spacers which are made for this purpose. Lemon carry a large stock of these and many more accessories and can deliver to site along with your reinforcement on one of our specialist crane offload lorries.

Standardised mesh fabric is defined in British Standard denominations (such as A193, or B785). These numbers refer to the cross-sectional areas of the mesh per metre squared. So with A193 mesh for example, there is 193mm2 of steel in each 1m (1000mm) width of mesh.

All reinforcing mesh is manufactured to BS4483/2005 with CARES certification. Please visit our downloads section for Lemon CARES approval certificates.

B785 Reinforcing Mesh

  • Main Wires - 10mm
  • Cross Wires - 8mm
  • Mesh Size - 200mm x 100mm
  • 8.16 Kg/M2
  • 94g/Sheet

B785 ECO Reinforcing Mesh

  • Main Wires - 10mm
  • Cross Wires - 8mm
  • Mesh Size - 200mm x 100mm
  • 7.03 Kg/M2
  • 81kg/Sheet

Additional Information

Material 10mm & 8mm Steel
Manufacturer No

Product Tags

Use spaces to separate tags. Use single quotes (') for phrases.

  1. Excellent Reinforcing Mesh review by Chris
    Product Rating

    Excellent reinforcing mesh when a stronger mesh is required. Its very thick and very heavy, be warned!
