B503 ECO Reinforcement Mesh | 4.8m x 2.4m

Alternative Names:
B503 Reinforcing Mesh, B503, B503 Mesh, Concrete Reinforcement, Concrete Reinforcement Mesh, Structural Mesh, Concrete Reinforcing Mesh, Mat, Steel Reinforcement, Steel Reinforcement Mesh, Steel Sheeting, Mesh Fabric, Reinforcing Fabric, Reinforcing Matting, Reinforcing Mesh, Mesh, ECO Mesh

Be the first to review this product

Quick Overview

From £60.00 Per Sheet

B503 Reinforcing Mesh Lemon supply large quantities of competitively priced reinforcement mesh in standard, ECO and merchant size. Mesh is a versatile and reliable reinforcement product extensively used in concrete slabs, walls and ground beams. We are committed to supplying the highest quality mesh, reliable delivery and superior support to residential and commercial builders. We cover the whole of the UK with depots in the South East and the Midlands. Need some help deciding what you need for your project?

ECO Mesh offers an increased efficiency engineered solution for reinforced concrete floors by saving a reinforcement wire on each lap of the mesh sheet. ECO mesh has the same centres as standard fabric mesh with the exception of the external overhangs which are 250mm compared to 50mm.

Our knowledgeable team can advise you on every aspect of your foundations or groundwork requirements. Everything from a weekend DIY project, a self-build house, to a complex commercial design, we have the expertise to help you. If you have a schedule from your structural engineer, we can calculate all the reinforcing steel and accessories you need to seamlessly complete your project. We can manufacture all your reinforcing steel, ground beams, cut and bent bar and pile cages. We are a one-stop shop for all your groundwork supplies.

£75.00
  • Buy 10 for £67.50 each and save 10%
  • Buy 15 for £63.75 each and save 15%
  • Buy 20 for £60.00 each and save 20%

Details

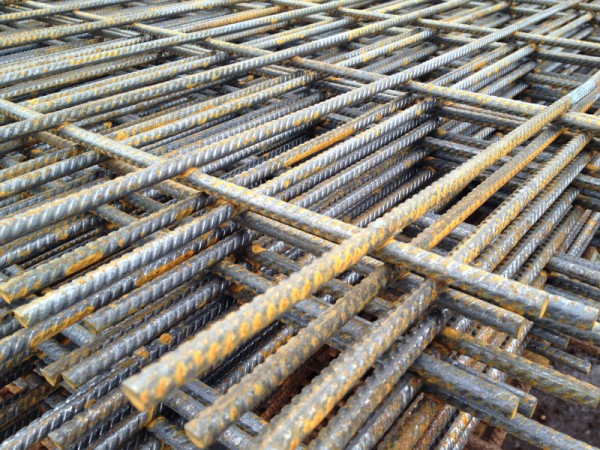

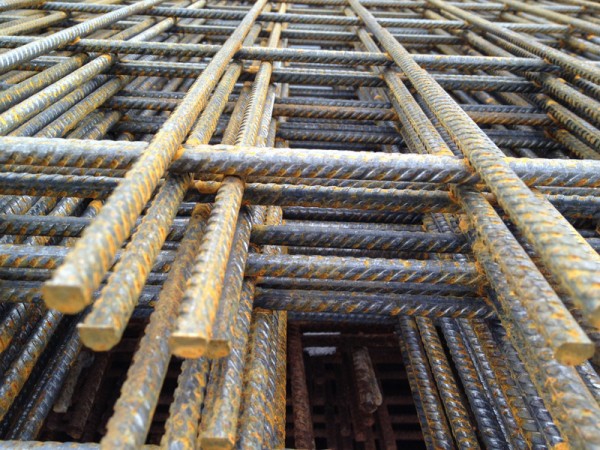

B503 Reinforcement Mesh is a medium grade structural steel reinforcing mesh, commonly used in commercial or civil engineering projects. Generally, this type of reinforcing mesh would be specified by a qualified structural engineer or architect. When encased in concrete, reinforcing mesh greatly increases the rigidity and strength of the structure. As the coefficient of thermal expansion is similar in both steel and concrete, a steel mesh reinforced concrete slab or wall expands and contracts at a comparable rate, therefore temperature fluctuations will not cause cracking of the concrete. Reinforcing steel is very strong in tension and concrete is strong in compression, by combining these two materials a very durable building structure is created.

Genius Hints Always have sufficient concrete covering for the mesh, both above, below and around. Mesh should be supported from below at regular intervals by Continuous Hystools, Circular Wire Spacers, Concrete Bar Spacers or Plate Spacers which are made for this purpose. Lemon carry a large stock of these and many more accessories and can deliver to site along with your reinforcement on one of our specialist crane offload lorries.

Standardised mesh fabric is defined in British Standard denominations (such as A193, or B785). These numbers refer to the cross sectional areas of the mesh per metre squared. So with A193 mesh for example, there is 193mm2 of steel in each 1m (1000mm) width of mesh.

All reinforcing mesh is manufactured to BS4483/2005 with CARES certification. Please visit our downloads section for Lemon CARES approval certificates.

B503 Reinforcing Mesh

  • Main Wires - 8mm
  • Cross Wires - 8mm
  • Mesh Size - 200mm x 100mm
  • Kg/M2 - 5.93kg
  • 68kg/Sheet

B503 ECO Reinforcing Mesh

  • Main Wires - 8mm
  • Cross Wires - 8mm
  • Mesh Size - 200mm x 100mm
  • Kg/M2 - 5.21kg
  • 60kg/Sheet

Additional Information

Material 8mm & 8mm Steel
Manufacturer No
