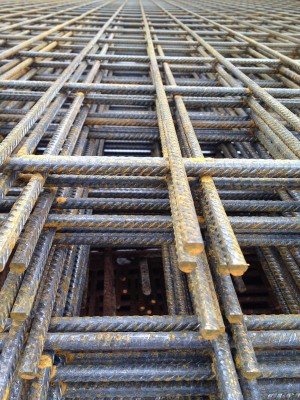

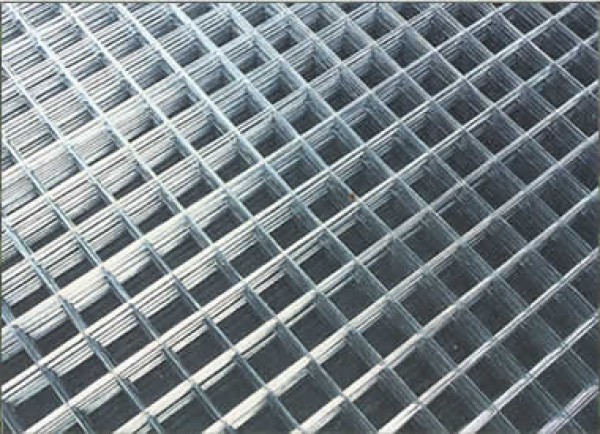

Welded Wire Mesh

Alternative Names:
Weld Mesh

Quick Overview

Welded wire Mesh

Available in both Self Colour or Galvanised

Mesh Size/Gauge	Bar Thickness	Weight (kg/ft)	Sheet Sizes
1" x 1" x 6g	4.69mm	0	8' x 4' or 12' x 6'
1" x 1" x 8g	3.94mm	0.71	8' x 4' or 12' x 6'
1" x 1" x 10g	3.00mm	0.41	8' x 4' or 12' x 6'
1" x 1" x 12g	2.44mm	0.27	8' x 4' or 12' x 6'
2" x 2" x 6g	4.69mm	0.51	8' x 4' or 12' x 6'
2" x 2" x 8g	3.94mm	0.36	8' x 4' or 12' x 6'
2" x 2" x 10g	3.00mm	0.21	8' x 4' or 12' x 6'
2" x 2" x 12g	2.44mm	0.14	8' x 4' or 12' x 6'
3" x 3" x 6g	4.69mm	0.35	8' x 4' or 12' x 6'
3" x 3" x 8g	3.94mm	0.24	8' x 4' or 12' x 6'
3" x 3" x 10g	3.00mm	0.14	8' x 4' or 12' x 6'
3" x 3" x 12g	2.44mm	0	8' x 4' or 12' x 6'
2" x 1" x 6g	4.69mm	0	8' x 4' or 12' x 6'
2" x 1" x 8g	3.94mm	0.54	8' x 4' or 12' x 6'
2" x 1" x 10g	3.00mm	0.31	8' x 4' or 12' x 6'
2" x 1" x 12g	2.44mm	0.21	8' x 4' or 12' x 6'
3" x 1/2" x 6g	4.69mm	0	8' x 4' or 12' x 6'
3" x 1/2" x 8g	3.94mm	0.83	8' x 4' or 12' x 6'
3" x 1/2" x 10g	3.00mm	0.48	8' x 4' or 12' x 6'
3" x 1/2" x 12g	2.44mm	0.32	8' x 4' or 12' x 6'

Sheet Size 8' x 4' = 2400mm x 1200mm

Sheet Size 12' x 6' = 3600mm x 1800mm
