Waler Plate

Wing Nut

80 1 100 0

Quick Overview

Price: £0.90 In stock.

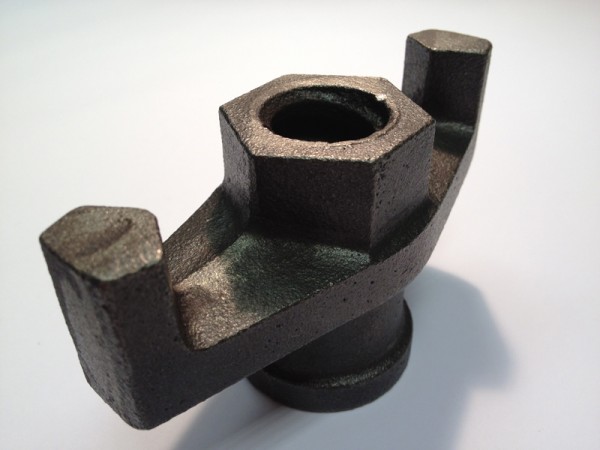

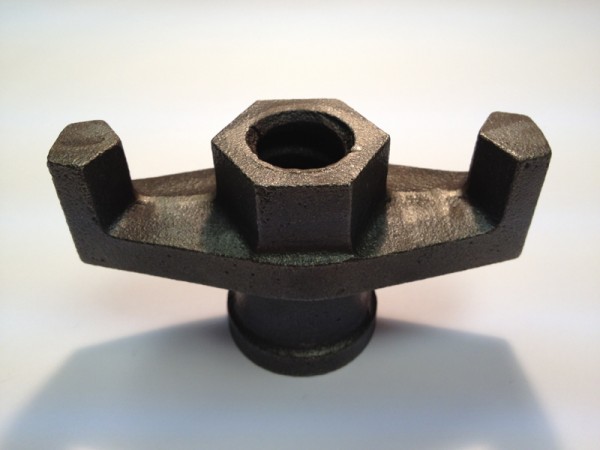

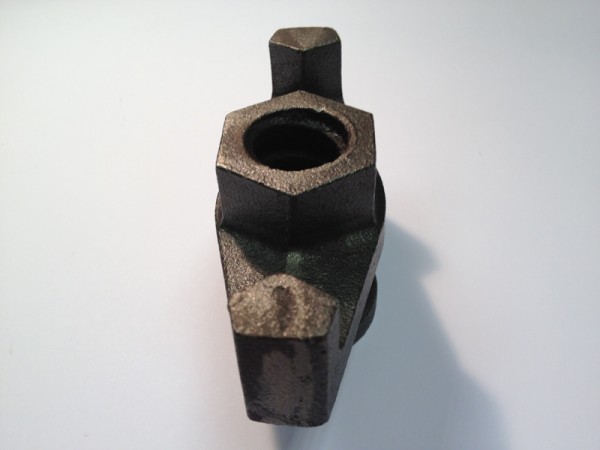

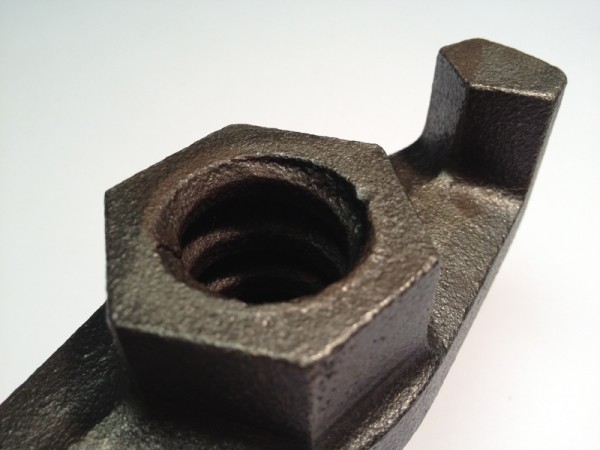

Formwork Wing Nuts are designed to secure the outside of the formwork along with Waler Plates. Used in conjunction with Tie Bars, Thruty Sleeves, Tie Bar Connectors, Thruty Cones, Waler Plates, Tie Plug Cement and Flupp Plugs, Premium Wing Nuts are part of a quick release formwork tie system. Everything you need to secure your formwork, easy to assemble & designed to enable the main parts to be re-used. These components complete the Tie Bar Formwork System. The Thruty Cones can be removed once the concrete has cured and striking of the formwork has taken place. The Flupp Plug is placed in the hole and finished with Tie Plug Cement to produce a watertight repair to the surface of the finished concrete. Should you require the bars at specific lengths, we offer a cutting service.


Note: All these products are available for next day delivery if ordered before 1PM. (except tie bar cutting service).


Dispatched from and sold by Lemon Groundwork Solutions.


We Can Help! Call our team of friendly experts on 01268 571571 or email us at sales@lemon-gs.co.uk and let us help you choose the reinforcement and accessories your project requires.












£0.90

Details

Formwork Wing Nuts are part of the Tie Bar System: Specially designed for securing formwork. Wing Nuts work with Steel Waler Plates to help spread the load of the Tie Bar into the supporting steel or timber struts, preventing damage and failure of the formwork. This system is primarily used to hold shuttering firmly in place when constructing concrete walls.

Tie bars are manufactured from hot rolled high tensile steel and have a coarse thread specifically designed to be resilient to the rigours of the construction site. This thread runs along the whole length of the bar allowing it to be cut or coupled at any point. During assembly of the formwork the Tie Bar is held in place by using the specially designed large Wing Nuts and large square washers called Waler Plates. The bars are slid through PVC Thruty Sleeves. Once the concrete has cured the bars are easily removed from the concrete structure to be reused. To create neat chamfered edges to these holes on the concrete structure, specially designed Thruty Cones are positioned on the ends of the Thruty sleeve while setting up the formwork. The Thruty Cones are removed once the concrete has cured. To create a smooth, watertight finish, Flupp Plugs are placed in the holes and a watertight repair is achieved with Tie Plug Cement.

We Stock 15mm Tie bars in 6 metre lengths, Waler Plates, Tie Bar Connectors, Thruty Sleeves, Thruty Cones, Tie Plug Cement, and  Flupp Plugs, everything you need to secure your formwork. Should you require tie bars at specific lengths, we offer a cutting service.

Note: All these products are available for next day delivery if ordered before 1PM. (except tie bar cutting service).

We Can Help! Call our team of friendly experts on 01268 571571 or email us at sales@lemon-gs.co.uk and let us help you choose the reinforcement and accessories your project requires.

Additional Information

Material Steel
Manufacturer No

Product Tags

Use spaces to separate tags. Use single quotes (') for phrases.

  1. Well made product, makes it easy to use on site review by Tony on 12/12/2013
    Product Rating
    Price
    Value
    Quality
    Rating

    Well made product, makes it easy to use on site. Delivered on time by Lemons.
