Cordek Heaveguard Pile Collars

Alternative Names:
Heaveguard Pile Collars

Quick Overview

Heaveguard Pile Collars are compressible low density Expanded Polystyrene products, used when foundations need to be protected against ground heave. As an integral part of the Cordek Cellcore ground heave system, they aid installation by fitting securely around the pile and providing a square edge for the Cellcore panels to be butted against. Heaveguard Pile Collars consists of low density expanded polystyrene, coloured green for easy identification on site, and available in a variety of different collar sizes and thicknesses.

Code	Product Name	Price
HGPC85/450	85mm Heaveguard Pile Collar (450mm x 450mm)	£8.10
HGPC85/600	85mm Heaveguard Pile Collar (600mm x 600mm)	£10.40
HGPC155/450	155mm Heaveguard Pile Collar (450mm x 450mm)	£18.90
HGPC155/600	155mm Heaveguard Pile Collar (600mm x 600mm)	£24.00
HGPC220/450	220mm Heaveguard Pile Collar (450mm x 450mm)	£22.30
HGPC220/600	220mm Heaveguard Pile Collar (600mm x 600mm)	£28.50

Discounts for larger quantities!

We provide competitive discounts for bulk orders.

Please contact us by either email at [email protected] or call 01268 571571 and we will calculate your unique discount for larger quantities.

Details

Features

Aids installation of Cellcore panels
Provides protection against ground heave
Wide range of collar sizes and thicknesses to suit most applications
Coloured green for easy identification on site

Applications

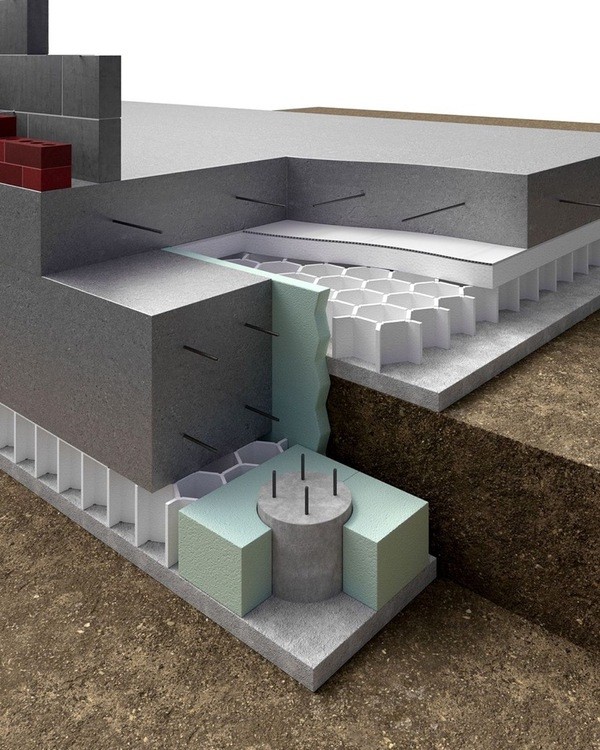

Heaveguard Pile Collars are designed to aid the installation of the Cordek Cellcore panels by fitting securely around the pile and providing a square edge for the Cellcore panels to be butted against.

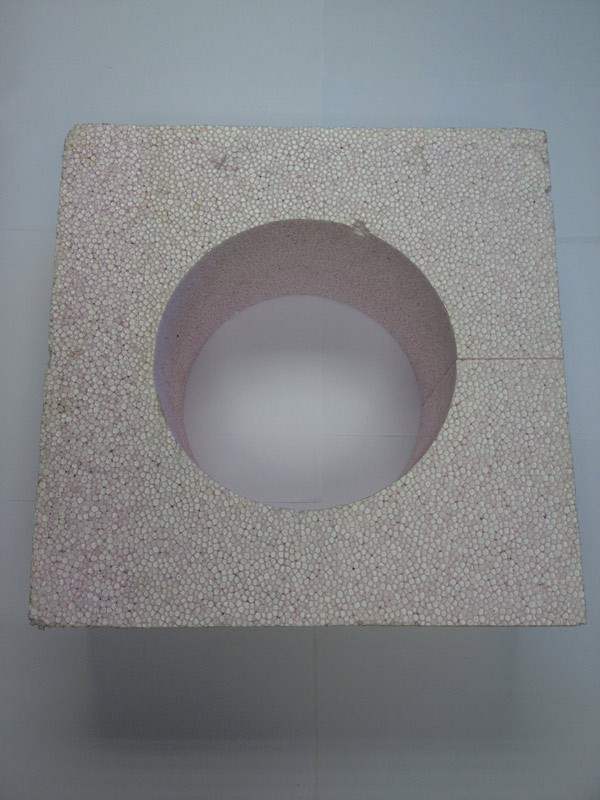

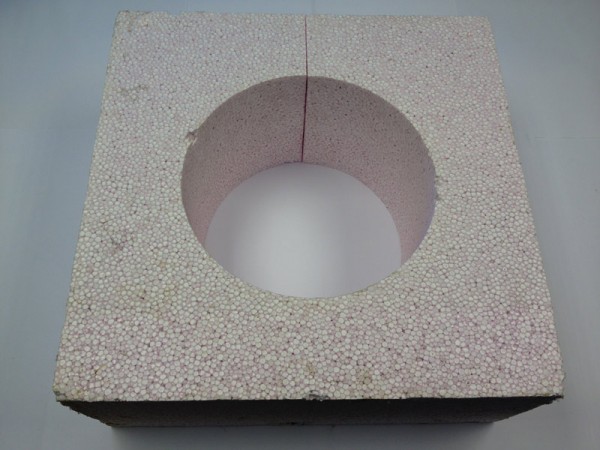

Each Heaveguard Pile Collar is generally manufactured to suit the width of the ground beam and the thickness of Cellcore panel it is being used in conjunction with. The void within the Pile Collar is designed to suit the diameter of the pile, with each pile collar available in two segments to aid installation.

Sizes: Standard pile collar thicknesses: 85mm, 155mm and 220mm

Other sizes also available, Please call our sales team for information.

Made to order.

Discounts for larger quantities!
We provide competitive discounts for bulk orders.

Lemon Groundworks are the only Cordek Stockist of HXB Cellcore.

Additional Information

Material	Polystyrene
