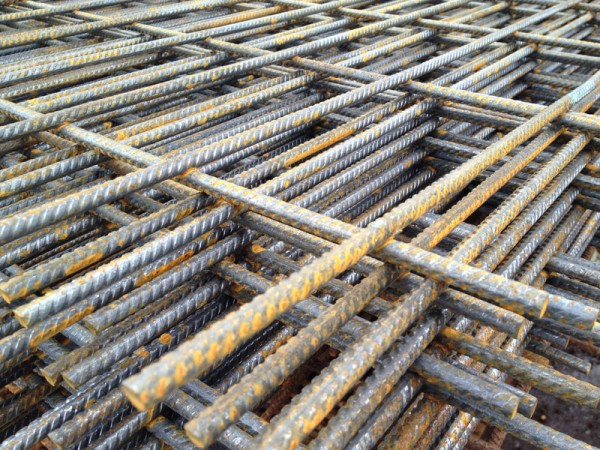

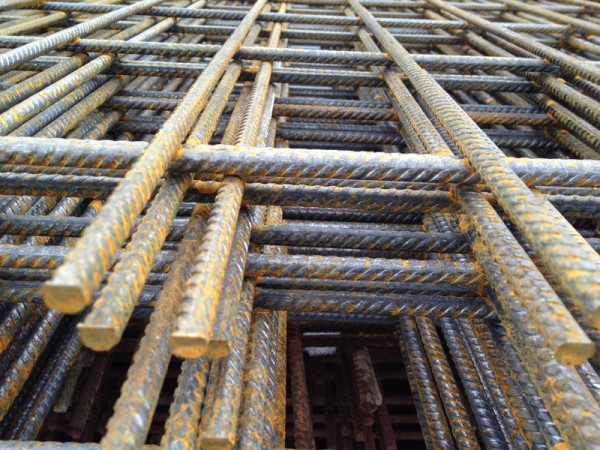

B385 Reinforcement mesh is a light grade structural steel reinforcing mesh, commonly used in commercial or civil engineering projects. Generally this type of reinforcing mesh would be specified by a qualified structural engineer or architect. When encased in concrete, reinforcing mesh greatly increases the rigidity and strength of the structure. As the coefficient of thermal expansion is similar in both steel and concrete, a steel mesh reinforced concrete slab or wall expands and contracts at a comparable rate, therefore temperature fluctuations will not cause cracking of the concrete. Reinforcing steel is very strong in tension and concrete is strong in compression, by combining these two materials a very durable building structure is created. From £41.95 per sheet. Need some help? Call our friendly team of foundation experts on 01268 571571
Genius Hints Always have sufficient concrete covering for the mesh, both above, below and around. Mesh should be supported from below at regular intervals by Continuous Hystools, Circular Wire Spacers, Concrete Bar Spacers or Plate Spacers which are made for this purpose. Lemon carry a large stock of these and many more accessories and can deliver to site along with your reinforcement on one of our specialist crane offload lorries.
Standardised mesh fabric is defined in British Standard denominations (such as A193, or B785). These numbers refer to the cross sectional areas of the mesh per metre squared. So with A193 mesh for example, there is 193mm2 of steel in each 1m (1000mm) width of mesh.
All reinforcing mesh is manufactured to BS4483/2005 with CARES certification.
Please visit our downloads section for Lemon CARES approval certificates.
|Material||7mm & 7mm Steel|
